PDM300plus planetary stirring and defoaming machine is a planetary centrifugal mixer that can be used to mix various liquid or powder materials. The sample materials can be nano powder, conductive ceramics, battery powder or slurry, carbon nanotubes, oxide powder and metal powder. This device is particularly suitable for mixing some high viscosity materials.

application area

The mixing and stirring fields of materials for products in high, sharp and refined fields such as LED, LCD, medical devices, electronic components, nano powder materials, fine chemical materials, printing electronic materials, electronic packaging materials and new energy materials, such as phosphor, glue, silica gel, silver paste, aluminum paste, adhesive, ink, silver nanoparticles, silver nanowires, conductive silver glue, insulation glue, battery paste, etc.

Product Features

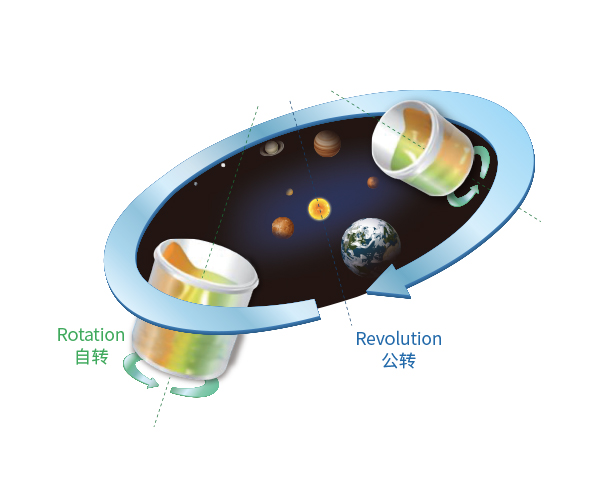

The material rotates and rotates within the container, achieving stirring, dispersion, and defoaming of high viscosity materials within minutes

High performance transmission: Adopting synchronous wheel transmission and its stable and low noise mechanical transmission, with low failure rate and long service life

No rod stirring, no pollution, and no damage to material properties

High speed revolution, high efficiency, and high viscosity glue can also be perfectly stirred evenly

Equipped with different cups and transition sleeves, large capacity equipment can choose small cups for easy conversion of size containers

According to customer requirements, various fixtures can be customized to meet customer requirements for direct use of different containers

technical parameter

Standard container: 300ml * 2 Hdpe（Φ77 * H85mm)

Maximum processing capacity: 300g * 1

Working principle: planetary gravity (rotation/revolution=0.7 times fixed) stirring/defoaming

Revolution: stepless speed regulation (100-2200rpm); Any input, with an accuracy of 1rpm

Self rotation: 0.7 times the revolution speed in mixing mode, 0.05 times the revolution speed in deaeration mode

Maximum speed: 2200rpm

Drive method: 400W motor

Parameter storage capacity: 10 sets

Balance adjustment: self balancing (without weight adjustment)

Setting time: 0-400 seconds * 5 segments (accuracy of 1 second)

Control system: dual closed-loop, PLC control, Chinese interface, touch screen operation

Lubrication system: cup sleeve splash proof structure, passive lubrication, anti bearing wear

Alarm function: out of balance/cover not closed/overload

Safety function: automatic stop when an error occurs/automatic locking of the upper cover during operation

Transmission method: synchronous wheel transmission (static)

Power supply voltage: AC220-240V (16A)

Power: 450W

External dimensions: 318 * * 448 * 390mm, 40kg
